Packaged Units

Our complete line of packaged systems include Packaged Air Conditioners, Packaged Gas Furnaces and Air Conditioners, Packaged Heat Pumps and Packaged Hybrid Heat. These self-contained systems are located outside of the home, mounted on the ground or the roof, and ducted into the home.

Just like individual furnaces, air conditioners and heat pumps, these package units carry SEER/SEER2, EER/EER2, AFUE and HSPF/HSPF2 ratings. The higher the rating, the more energy efficient the unit is. The Department of Energy’s (DOE) new minimum efficiency standards vary by region, so your choice of package units will depend on where you live.

The DOE’s regional breakdown by state is as follows:

• North
  • 14.0 SEER/ 13.4 SEER2
  • 8.0 HSPF/6.7 HSPF2
  • 80% AFUE
• Southeast
  • 15.0 SEER/ 14.3 SEER2
  • 8.0 HSPF/6.7 HSPF2
  • 90% AFUE
• Southwest
  • 15.0 SEER/ 14.3 SEER2
  • 8.0 HSPF/6.7 HSPF2
  • 90% AFUE

SEER/SEER2 And HSPF/HSPF2

SEER2 is an updated rating standard introduced by the DOE. SEER2 standards are intended to provide a better gauge of typical home operating conditions whereas the older SEER rating utilized very precise protocols to determine ratings in ideal conditions. SEER2 standards include updated testing means that give a better indication of how a unit will operate in the real world.

HSPF2 is the newest type of rating system that expands on the basic HSPF scale.

Much like miles-per-gallon for a car, SEER/SEER2, EER/EER2, AFUE and HSPF/HSPF2 offer an easy way to compare efficiencies of different products – the higher the rating, the more efficient the unit. Just be sure you are comparing either SEER vs SEER or SEER2 vs SEER2 (same for EER/EER2 and HSPF/HSPF2).

EER2 versus SEER2

EER2 and SEER2 both evaluate an air conditioner’s energy efficiency, but they’re concerned with two different types of temperature conditions:

EER2 measures an air conditioner’s efficiency at the peak cooling temperature of 95°F.
SEER2 measures an air conditioner’s efficiency throughout an entire cooling season, with temperatures ranging from 65°F to 104°F.

Right-Size Your HVAC Packaged Units. Give DZO Mechanical, Inc. A Call Today!

We carry a wide offering that includes advanced features such as 2-stage compressors, variable speed fans and quiet operation. Call us now at (484) 454-3346.

Air Conditioning Only Product Offering

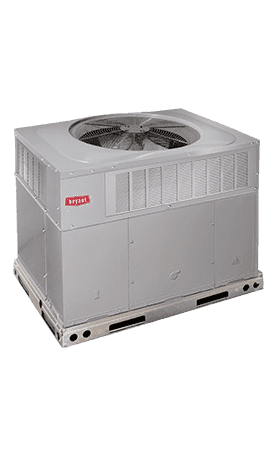

Preferred™ 16 SEER Packaged Air Conditioner System

View Brochure
Model Family: 707E
Efficiency SEER/SEER2: up to 16 SEER2
Efficiency EER/EER2: 11.5 EER2
Energy Star Rated: ENERGY STAR ®
Sound Level: As low as 72 dB
Blower Motor: High-efficiency multi-speed (9-Speed)
Refrigerant Type: Puron®
Compressor: Two-stage operation
Factory Warranty Parts: 10-year parts limited warranty upon registration
Factory Warranty Compressor: 10-year limited warranty upon registration

Manufacturer's Stated Benefits:

• Copper coil 5-year parts limited warranty
• Enjoy the optimized comfort of multi-speed air delivery
• Galvanized steel cabinet with
• Louvered grille protects the coil against physical damage
• Solid cabinet base panels help prevent infiltration of dirt, debris and moisture
• Manage your system from afar with remote access when paired with the Bryant Housewise™ Wi-Fi® thermostat
• Automatic maintenance reminders and service alerts with the Housewise thermostat

Legacy™ Line 14 SEER Packaged Air Conditioner System

View Brochure
Model Family: 707C
Efficiency SEER/SEER2: 13.4 SEER2
Efficiency EER/EER2: Up to 11 EER2
Energy Star Rated: N/A
Sound Level: As low as 73 dB
Blower Motor: High-efficiency multi-speed
Refrigerant Type: Puron ®
Compressor: Single-stage operation
Factory Warranty Parts: 10-year parts limited warranty upon registration
Factory Warranty Compressor: 10-year compressor limited warranty upon registration

Manufacturer's Stated Benefits:

• Enjoy the optimized comfort of multi-speed air delivery
• Blower-enhanced comfort during cooling operation through reduced humidity with appropriate control
• Galvanized steel cabinet with
• Heavy-duty wire grille protects the coil against physical damage
• Solid cabinet base panels help prevent infiltration of dirt, debris and moisture

Base Series Packaged 14 Air Conditioner System

View Brochure
Model Family: PA4Z
Efficiency SEER/SEER2: 13.4 SEER2
Efficiency EER/EER2: 11 EER2
Energy Star Rated: No
Sound Level: As low as 72 dB
Blower Motor: High-efficiency fixed-speed
Refrigerant Type: Puron ®
Compressor: High-efficiency fixed-speed
Factory Warranty Parts: 10-year parts limited warranty upon registration
Factory Warranty Compressor: 10-year compressor limited warranty upon registration

Manufacturer's Stated Benefits:

• Compact cabinet is designed for limited space applications, including manufactured housing
• Galvanized steel cabinet with
• Louvered grille protects the coil against physical damage
• Solid cabinet base panels help prevent infiltration of dirt, debris and moisture
• DuraCoat™ tin-plated coil protection for additional corrosion resistance
